進口晶振

首頁進口晶振愛普生石英晶振Q24FA20H00106,FA-20H,2520mm,藍牙專用,32兆赫茲,-20~+75℃

    Q24FA20H00106,FA-20H,2520mm,藍牙專用,32兆赫茲,-20~+75℃

  • 產品型號：45704460
  • 晶振頻率：32MHZ
  • 晶振尺寸：2.5*2.0*0.5mm
  • 產品應用： Q24FA20H00106,FA-20H,2520mm,藍牙專用,32兆赫茲,-20~+75℃,尺寸為2520mm,頻率為32MHZ,頻率容差20ppm,負載電容12pF，工作溫度-20~+75℃，愛普生進口晶振，EPSON晶振，無源貼片晶振，石英晶體諧振器，SMD晶體，石英貼片...

Q24FA20H00106,FA-20H,2520mm,藍牙專用,32兆赫茲,-20~+75℃,尺寸為2520mm,頻率為32MHZ,頻率容差20ppm,負載電容12pF，工作溫度-20~+75℃，愛普生進口晶振，EPSON晶振，無源貼片晶振，石英晶體諧振器，SMD晶體，石英貼片晶振，無源晶振，高性能晶振，低耗能晶振，2520mm無源晶體，32MHZ貼片晶振，移動電話晶振，藍牙晶振，儀器設備晶振，無線網絡晶振，智能產品晶振，Q24FA20H00116無源晶體，Q24FA20H00100石英貼片晶振。
無源晶振產品主要應用范圍：手機，藍牙，無線局域網， ISM波段無線電，主控板時鐘，儀器設備，無線網絡，智能產品等應用程序。Q24FA20H00106,FA-20H,2520mm,藍牙專用,32兆赫茲,-20~+75℃.Q24FA20H00106,FA-20H,2520mm,藍牙專用,32兆赫茲,-20~+75℃ 參數圖

Item Symbol Specifications Conditions / Remarks
For RF Reference For Clock
Nominal frequency range f_nom 12MHz to 54MHz Fundamental
Please contact us about available
frequencies.
Storage temperature range T_stg -40 °C to + 125 °C Storage as single product.
Operating temperature range T_use -40 °C to +85 °C (+105 °C) Please contact us about +85 °C < T_use
Level of drive DL 100 µW Max. 200 µW Max. Recommended: 10 µW
Frequency tolerance f_tol ± 10 × 10-6 ±30 × 10-6 +25 °C
Please contact us for inquiries.
Frequency versus temperature
characteristics		 f_tem ± 10 × 10-6 ±30 × 10-6 -20 °C to +75 °C
Please contact us for inquiries.
Load capacitance CL 6 pF to ∞ Please specify.
Motional resistance (ESR) R1 As per table below -20 °C to +75 °C
Frequency aging f_age ± 1 × 10-6 to ±3 × 10-6 / year Max. *1 +25 °C, First year

Q24FA20H00106晶振  特點
•標稱頻率范圍:12mhz至54mhz
•外部尺寸:2.5×2.0×0.55mm
•泛音順序:基本
•應用范圍:手機、藍牙、無線局域網
: ISM波段無線電，主控板時鐘

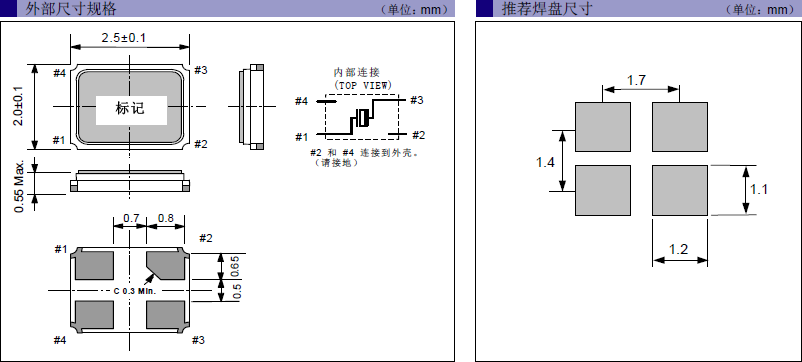

Q24FA20H00106,FA-20H,2520mm,藍牙專用,32兆赫茲,-20~+75℃   尺寸圖
訂購產品時請注明型號名稱、頻率和規格編號。
有關規格的更多問題，請隨時與我們聯系。
微信：13824306246  QQ:794113422 郵箱：taiheth@163.com  座機:0755-27872782
更多相關日本愛普生石英晶振型號
編碼 尺寸 型號 頻率 負載 頻率 @+25°C 工作溫度
Q24FA20H00001 2.5 x 2 x 0.55mm FA-20H 18.000000 MHz 10 pF +/-10 ppm -30 to +85 °C
Q24FA20H00003 2.5 x 2 x 0.55mm FA-20H 40.000000 MHz 9 pF +/-10 ppm -20 to +70 °C
Q24FA20H00005 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 9 pF +/-10 ppm -20 to +75 °C
Q24FA20H00006 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 10 pF +/-10 ppm -20 to +70 °C
Q24FA20H00008 2.5 x 2 x 0.55mm FA-20H 48.000000 MHz 7 pF +/-50 ppm -20 to +70 °C
Q24FA20H00029 2.5 x 2 x 0.55mm FA-20H 40.000000 MHz 8 pF +/-10 ppm -20 to +75 °C
Q24FA20H00031 2.5 x 2 x 0.55mm FA-20H 40.000000 MHz 9 pF +/-10 ppm -20 to +75 °C
Q24FA20H00036 2.5 x 2 x 0.55mm FA-20H 40.000000 MHz 11.5 pF +/-10 ppm -20 to +75 °C
Q24FA20H00038 2.5 x 2 x 0.55mm FA-20H 40.000000 MHz 12 pF +/-10 ppm -20 to +70 °C
Q24FA20H00039 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 9 pF -9/+11 ppm -20 to +75 °C
Q24FA20H00044 2.5 x 2 x 0.55mm FA-20H 16.000000 MHz 9 pF +/-10 ppm -20 to +75 °C
Q24FA20H00047 2.5 x 2 x 0.55mm FA-20H 40.000000 MHz 8.5 pF +/-15 ppm -20 to +85 °C
Q24FA20H00050 2.5 x 2 x 0.55mm FA-20H 32.000000 MHz 16 pF +/-10 ppm -40 to +85 °C
Q24FA20H00051 2.5 x 2 x 0.55mm FA-20H 16.000000 MHz 12 pF +/-10 ppm -15 to +75 °C
Q24FA20H00052 2.5 x 2 x 0.55mm FA-20H 40.000000 MHz 9 pF +/-10 ppm -20 to +75 °C
Q24FA20H00053 2.5 x 2 x 0.55mm FA-20H 16.000000 MHz 9 pF +/-20 ppm -20 to +70 °C
Q24FA20H00054 2.5 x 2 x 0.55mm FA-20H 24.000000 MHz 12 pF +/-30 ppm -20 to +75 °C
Q24FA20H00059 2.5 x 2 x 0.55mm FA-20H 16.000000 MHz 6 pF +/-10 ppm -20 to +75 °C
Q24FA20H00066 2.5 x 2 x 0.55mm FA-20H 16.000000 MHz 9 pF +/-30 ppm -20 to +75 °C
Q24FA20H00069 2.5 x 2 x 0.55mm FA-20H 40.000000 MHz 10 pF +/-10 ppm -30 to +85 °C
Q24FA20H00070 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 8 pF +/-10 ppm -20 to +75 °C
Q24FA20H00073 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 10 pF +/-10 ppm -20 to +75 °C
Q24FA20H00074 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 10.5 pF +/-10 ppm -20 to +75 °C
Q24FA20H00077 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 12 pF +/-10 ppm -20 to +75 °C
Q24FA20H00079 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 16 pF +/-10 ppm -20 to +75 °C
Q24FA20H00085 2.5 x 2 x 0.55mm FA-20H 24.000000 MHz 10 pF +/-10 ppm -20 to +75 °C
Q24FA20H00086 2.5 x 2 x 0.55mm FA-20H 24.576000 MHz 8 pF +/-15 ppm -20 to +75 °C
Q24FA20H00087 2.5 x 2 x 0.55mm FA-20H 30.000000 MHz 10 pF +/-10 ppm -20 to +70 °C
Q24FA20H00092 2.5 x 2 x 0.55mm FA-20H 24.000000 MHz 10 pF +/-10 ppm -40 to +85 °C
Q24FA20H00093 2.5 x 2 x 0.55mm FA-20H 12.000000 MHz 10 pF +/-30 ppm -20 to +70 °C
Q24FA20H00095 2.5 x 2 x 0.55mm FA-20H 27.000000 MHz 7 pF +/-10 ppm -20 to +75 °C
Q24FA20H00097 2.5 x 2 x 0.55mm FA-20H 40.000000 MHz 10 pF +/-10 ppm -20 to +75 °C
Q24FA20H00100 2.5 x 2 x 0.55mm FA-20H 16.000000 MHz 20 pF +/-20 ppm -20 to +75 °C
Q24FA20H00106 2.5 x 2 x 0.55mm FA-20H 32.000000 MHz 12 pF +/-10 ppm -20 to +75 °C
Q24FA20H00114 2.5 x 2 x 0.55mm FA-20H 25.000000 MHz 10 pF +/-10 ppm -40 to +85 °C
Q24FA20H00115 2.5 x 2 x 0.55mm FA-20H 25.000000 MHz 8 pF +/-30 ppm -20 to +75 °C
Q24FA20H00116 2.5 x 2 x 0.55mm FA-20H 25.000000 MHz 18 pF +/-30 ppm -30 to +85 °C
Q24FA20H00118 2.5 x 2 x 0.55mm FA-20H 27.120000 MHz 18 pF +/-10 ppm -20 to +70 °C
Q24FA20H00122 2.5 x 2 x 0.55mm FA-20H 16.000000 MHz 9 pF +/-10 ppm -40 to +85 °C
Q24FA20H00126 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 15 pF +/-10 ppm -20 to +75 °C
Q24FA20H00128 2.5 x 2 x 0.55mm FA-20H 20.000000 MHz 8 pF +/-10 ppm -20 to +75 °C
Q24FA20H00132 2.5 x 2 x 0.55mm FA-20H 24.576000 MHz 8 pF +/-10 ppm -20 to +75 °C
Q24FA20H00137 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 8 pF +/-10 ppm -20 to +80 °C
Q24FA20H00139 2.5 x 2 x 0.55mm FA-20H 30.000000 MHz 8 pF +/-30 ppm -40 to +85 °C
Q24FA20H00147 2.5 x 2 x 0.55mm FA-20H 27.000000 MHz 10 pF +/-10 ppm -40 to +85 °C
Q24FA20H00150 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 8 pF +/-30 ppm -20 to +85 °C
Q24FA20H00151 2.5 x 2 x 0.55mm FA-20H 32.000000 MHz 16 pF +/-10 ppm -20 to +75 °C
Q24FA20H00152 2.5 x 2 x 0.55mm FA-20H 12.000000 MHz 10 pF +/-30 ppm -20 to +75 °C
Q24FA20H00153 2.5 x 2 x 0.55mm FA-20H 24.000000 MHz 12 pF +/-10 ppm -30 to +85 °C
Q24FA20H00155 2.5 x 2 x 0.55mm FA-20H 27.000000 MHz 8 pF +/-10 ppm -30 to +85 °C
Q24FA20H00156 2.5 x 2 x 0.55mm FA-20H 24.000000 MHz 7 pF +/-10 ppm -20 to +75 °C
Q24FA20H00166 2.5 x 2 x 0.55mm FA-20H 25.000000 MHz 18 pF +/-10 ppm -20 to +75 °C
Q24FA20H00169 2.5 x 2 x 0.55mm FA-20H 40.000000 MHz 12 pF +/-10 ppm -20 to +75 °C
Q24FA20H00172 2.5 x 2 x 0.55mm FA-20H 25.000000 MHz 20 pF +/-10 ppm -40 to +85 °C
Q24FA20H00175 2.5 x 2 x 0.55mm FA-20H 25.000000 MHz 10 pF +/-30 ppm -20 to +75 °C
Q24FA20H00176 2.5 x 2 x 0.55mm FA-20H 20.000000 MHz 9 pF +/-10 ppm -20 to +75 °C
Q24FA20H00193 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 10 pF +/-10 ppm -40 to +85 °C
Q24FA20H00196 2.5 x 2 x 0.55mm FA-20H 32.000000 MHz 8 pF +/-10 ppm -20 to +75 °C
Q24FA20H00201 2.5 x 2 x 0.55mm FA-20H 25.000000 MHz 10 pF +/-10 ppm -20 to +75 °C
Q24FA20H00202 2.5 x 2 x 0.55mm FA-20H 25.000000 MHz 14 pF +/-30 ppm -20 to +75 °C
Q24FA20H00208 2.5 x 2 x 0.55mm FA-20H 32.000000 MHz 13 pF +/-10 ppm -20 to +75 °C
Q24FA20H00209 2.5 x 2 x 0.55mm FA-20H 40.000000 MHz 9 pF +/-10 ppm -40 to +85 °C
Q24FA20H00214 2.5 x 2 x 0.55mm FA-20H 40.000000 MHz 10 pF +/-10 ppm -40 to +85 °C
Q24FA20H00223 2.5 x 2 x 0.55mm FA-20H 30.000000 MHz 12 pF +/-10 ppm -40 to +85 °C
Q24FA20H00225 2.5 x 2 x 0.55mm FA-20H 16.000000 MHz 8 pF +/-10 ppm -20 to +70 °C
Q24FA20H00228 2.5 x 2 x 0.55mm FA-20H 16.000000 MHz 10 pF +/-30 ppm -30 to +85 °C
Q24FA20H00229 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 6 pF +/-10 ppm -20 to +75 °C
Q24FA20H00232 2.5 x 2 x 0.55mm FA-20H愛普生晶振 16.000000 MHz 12 pF +/-10 ppm -40 to +85 °C
Q24FA20H00233 2.5 x 2 x 0.55mm FA-20H 27.000000 MHz 12 pF +/-10 ppm -20 to +85 °C
Q24FA20H00238 2.5 x 2 x 0.55mm FA-20H 27.000000 MHz 12 pF +/-10 ppm -40 to +85 °C
Q24FA20H00241 2.5 x 2 x 0.55mm FA-20H 27.000000 MHz 12 pF +/-30 ppm -20 to +70 °C
Q24FA20H00242 2.5 x 2 x 0.55mm FA-20H 24.000000 MHz 12 pF +/-10 ppm -20 to +75 °C
Q24FA20H00247 2.5 x 2 x 0.55mm FA-20H 16.000000 MHz 16 pF +/-10 ppm -40 to +85 °C
Q24FA20H00249 2.5 x 2 x 0.55mm FA-20H 24.000000 MHz 7 pF +/-30 ppm -20 to +70 °C
Q24FA20H00251 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 10 pF +/-25 ppm -20 to +75 °C
Q24FA20H00260 2.5 x 2 x 0.55mm FA-20H 32.000000 MHz 10 pF +/-10 ppm -20 to +75 °C
Q24FA20H00266 2.5 x 2 x 0.55mm FA-20H 24.000000 MHz 10 pF +/-30 ppm -40 to +85 °C
Q24FA20H00270 2.5 x 2 x 0.55mm FA-20H 24.000000 MHz 10 pF +/-30 ppm -30 to +85 °C
Q24FA20H00271 2.5 x 2 x 0.55mm FA-20H 24.000000 MHz 10 pF +/-20 ppm -30 to +70 °C
Q24FA20H00272 2.5 x 2 x 0.55mm FA-20H 25.000000 MHz 18 pF +/-30 ppm -20 to +70 °C
Q24FA20H00276 2.5 x 2 x 0.55mm FA-20H 27.120000 MHz 10 pF +/-15 ppm -20 to +75 °C
Q24FA20H00279 2.5 x 2 x 0.55mm FA-20H 26.000000 MHz 12 pF +/-10 ppm -20 to +70 °C
Q24FA20H00287 2.5 x 2 x 0.55mm FA-20H 30.000000 MHz 8 pF +/-10 ppm -20 to +75 °C
